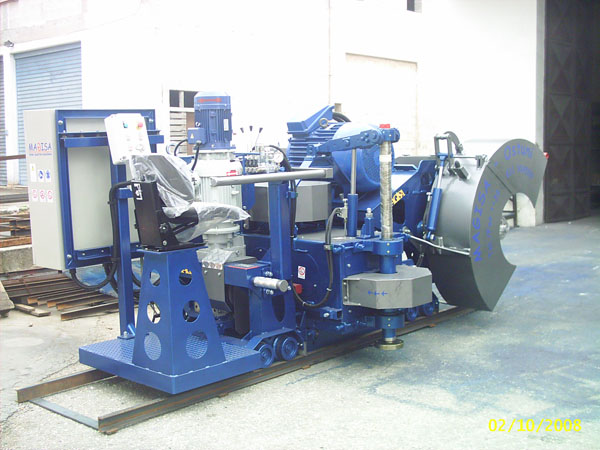

Proper to contemporarily cut both in horizontal sense that vertical with a speed of cut from 0 ÷ 25 m/min.
Slide on binary type ROTAIA S14
Total power Kw 130,5
Depth of Vertical max 420 mm.
Depth of Horizontal cut max 250mm
Vertical disk f 1200mm.
Horizontal disk f 700mm.
Recommended generator KVA 225
Electric motors
- Vertical cut kw 75
Type IP 55 Class F ŋ 0, 87÷ 0,92V 380 50 Hz B3
- Horizontal cut Kw 45
Type IP 55 Class F ŋ 0, 87÷ 0,92V 38050 Hz B3
- Advancement Kw7,5
Type IP 55 Class F ŋ 0, 80÷ 0,92V 380 50 Hz B5
- I install hydraulic Kw 3
Type IP 55 Class F ŋ 0, 80÷ 0,92V 380 50 Hz B5
Electric picture
With commands of driving to low tension as foreseen by the law
Opportunely proportionate and pulsating of march / single arrest for every motor.
Safety
The machine is provided of electric devices of block that make her/it sure and of acoustic and bright device that warns that the cars it is in movement.
And' provided of protections on all the mechanical organs in movement and protection on the disks up to maximally possible.
I install hydraulic
Pomp to gears. distributor to3 elements
Brought 10 litri/1’
Pressure 100 ÷ 150 bar
Ability reservoir 50Lt.
ADVANCEMENT OF CUT
Hydraulic to varying course
independent operated through lever
inversion of march with point of madman
speed max. 50 @m/min. 4 to empty
4 wheels engines
LOOM
It structures in steel on purpose studied for a' tall resistance, elettrosaldato. Articulation vertical cut, to hydraulic command through hydraulic martinetto to double effect; Translation cart for
Horizontal loom through martinetto to double effect
And it flows on pads and adjustable guides to annul the game of usury.
Driving Horizontal cut through hydraulic martinetto to double effect integrated in a system of levers.
Measure and Mass
Width___2250_______mm. ~
Lenght___4500_______mm. ~
Height______1900_______mm. ~
Weigth________5000_______Kg. ~
Gives technical and characteristics can suffer variations
